Le Carré des Docks

Le Havre
2016

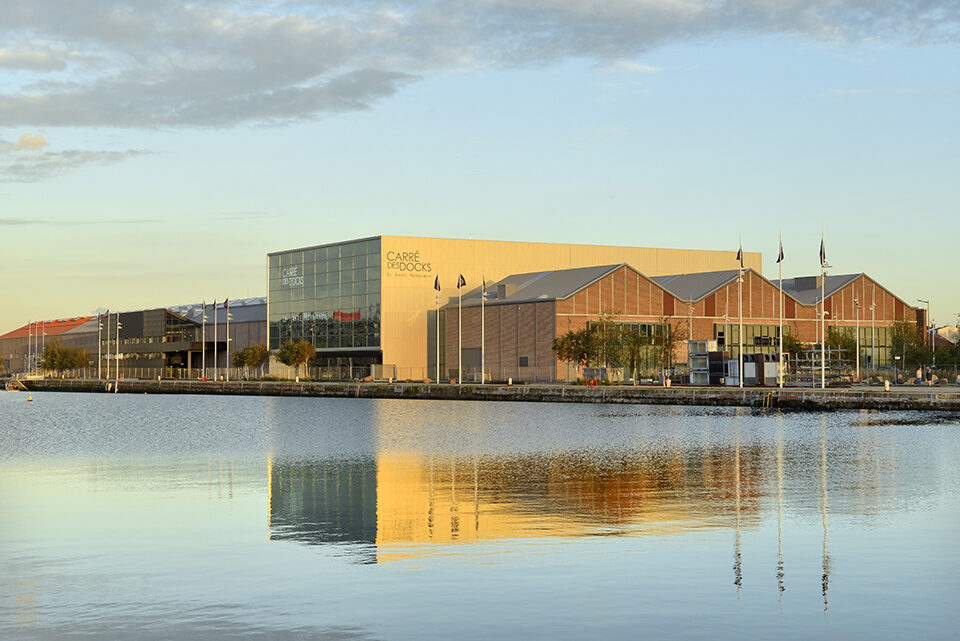

Carré des Docks 1 Georges DE KINDER

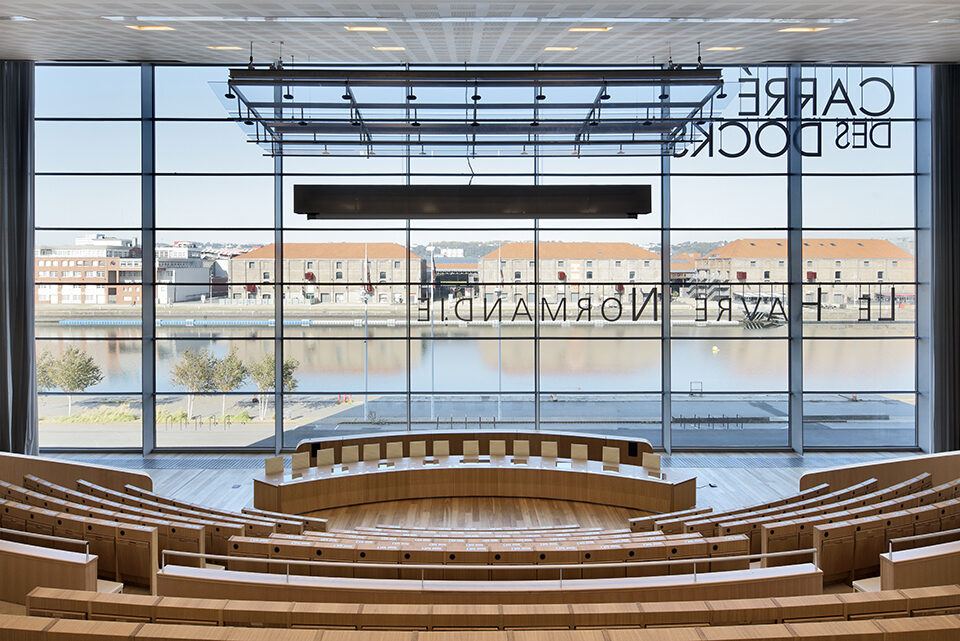

Carré des Docks 2 Georges DE KINDER

Adaptive reuse of the former Docks Café into an exhibition center and construction of a new convention center.

To rehabilitate an existing building, you first have to consider it in the context of its past use to highlight its qualities. However, the existing structure must also be considered in terms of its future potential, crucial for determining and anticipating the challenges ahead. Over the course of the project, this unavoidable relationship with time formed the foundation of a philosophy based on five key design values: efficiency, sobriety, heritage enhancement, minimal and passive intervention, and service to users.

This dialog between heritage and new uses called for an endogenous response that urged us to look beyond the energy dimension alone and employ existing resources as materials for reshaping uses, image, performance, access, along with other parameters.

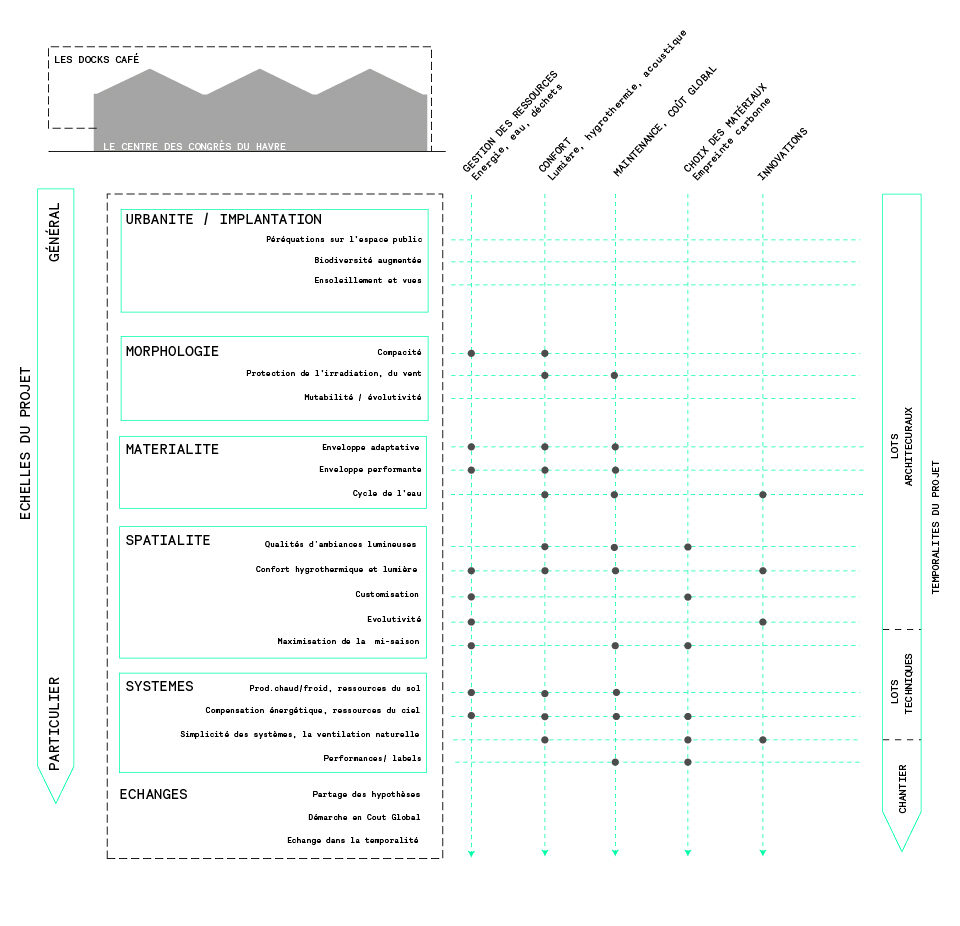

Carré des Docks SUSTAINABLE DEVELOPMENT PROJECT MATRIX

Project Matrix

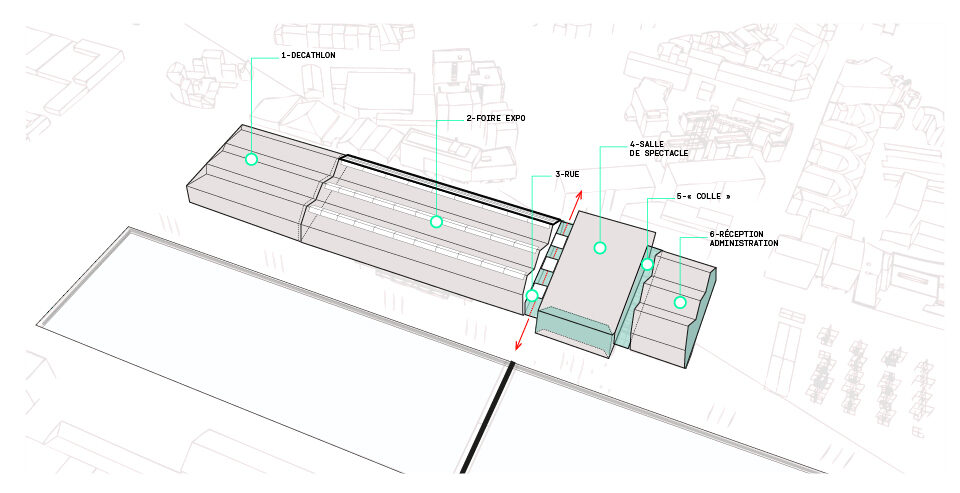

Carré des Docks Project Site Plan

Project Site Plan

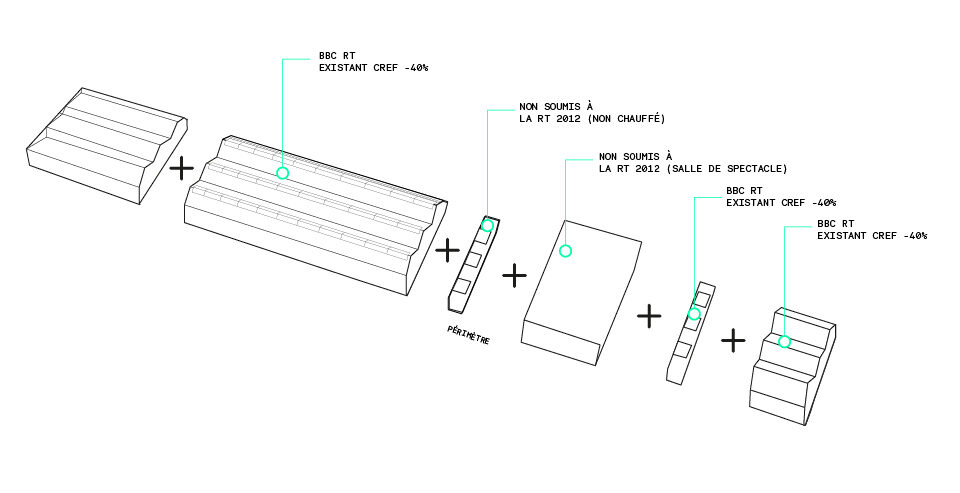

Carré des Docks Presentation of Environmental Goals

Presentation of Environmental Goals

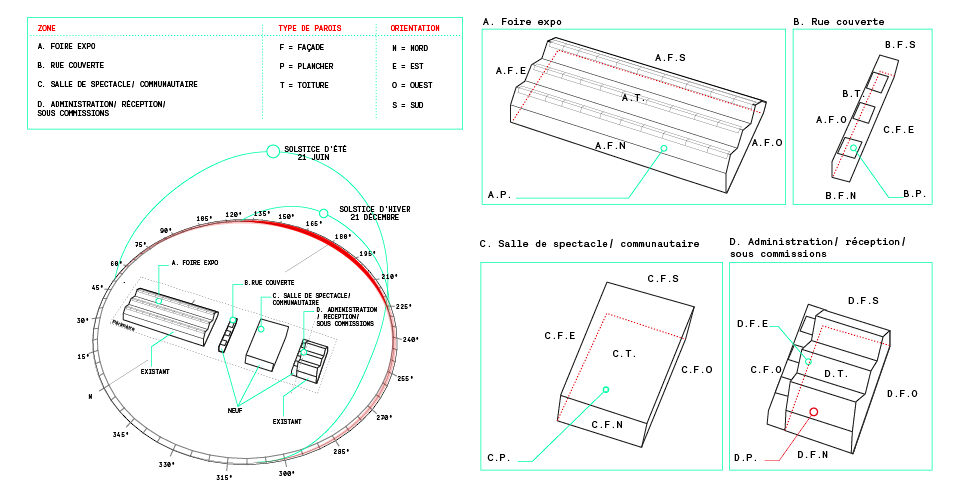

Carré des Docks Specifications of Interactive Surfaces of Programs

Specifications of Interactive Surfaces of Programs

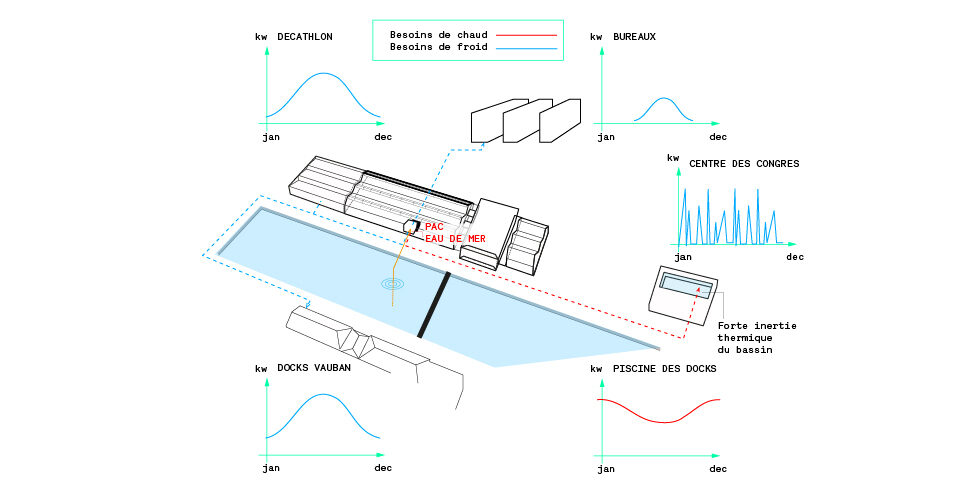

Carré des Docks Overview of Program Requirements

Overview of Program Requirements

Carré des docs Overview of External Resources

Overview of External Resources

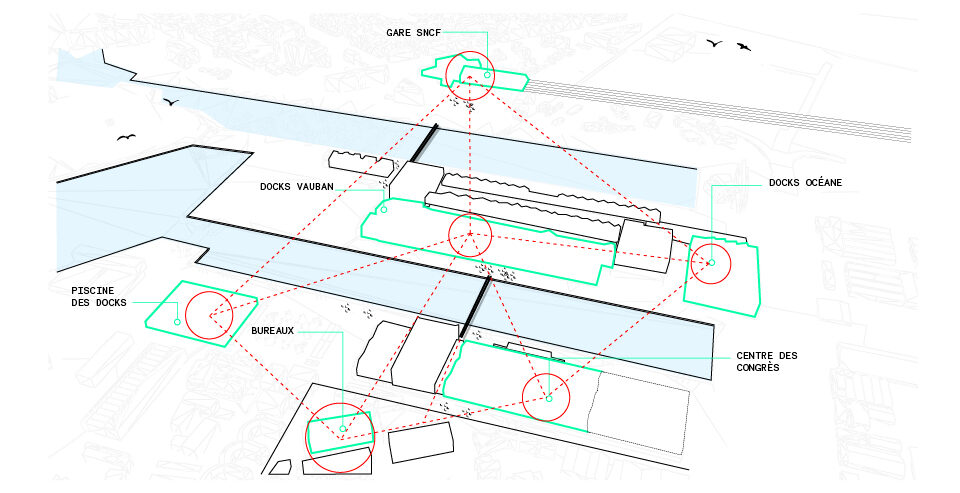

Carré des docs Synergies Between Programs

Planned Synergies Between Programs

The project was then constantly guided by a focus on the effort-to-gain ratio, i.e., maximum results with minimum effort. Our solutions factored in the specific properties of the site/location, the nature of the programs, and the planned occupancy, with a view to providing a technically measured response that put the emphasis on passive qualities, thereby reducing the risk of technical failure and maintenance requirements that are the bane of overly complex systems. By assessing what was already there, we turned obstacles into assets. We also identified and retained the positive qualities that serve as inherited resources. We also placed the user (and future uses) at the center of the design process, fully understanding the multiple activities planned, but also taking into account comfort and interior environmental requirements in terms of climate, acoustics, light, heat/moisture, etc. This multi-strand process embracing location, heritage, applications and activities, comfort specifications, and interior environment design highlights the prolific approach of our intervention.

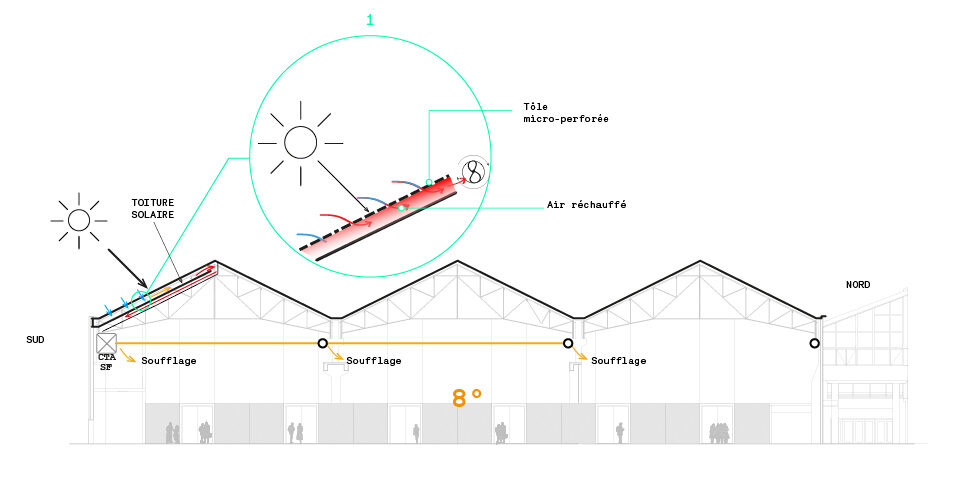

Carré des Docks Winter Occupancy Conservative 10

Optimized Approach to Seasonal Thermal Comfort

  1. Winter Occupancy Conservative

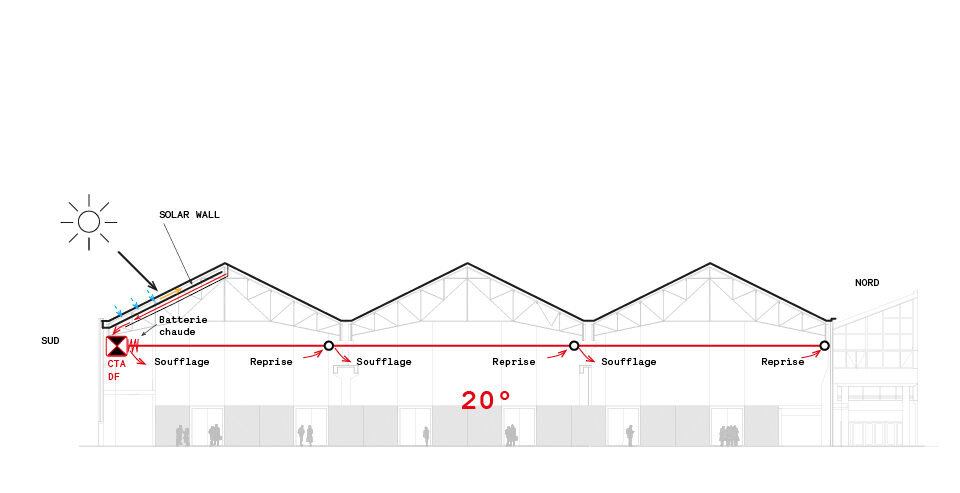

Carré des Docks Winter Occupancy Conservative 11

Optimized Approach to Seasonal Thermal Comfort

  1. Winter Occupancy Conservative

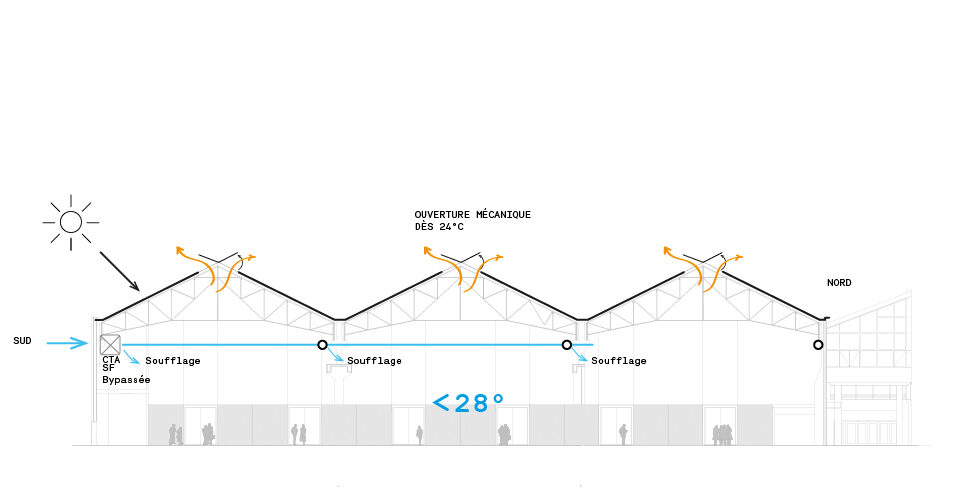

Carré des Docks Summer Occupancy Dissipative

Optimized Approach to Seasonal Thermal Comfort

  1. Summer Occupancy Dissipative

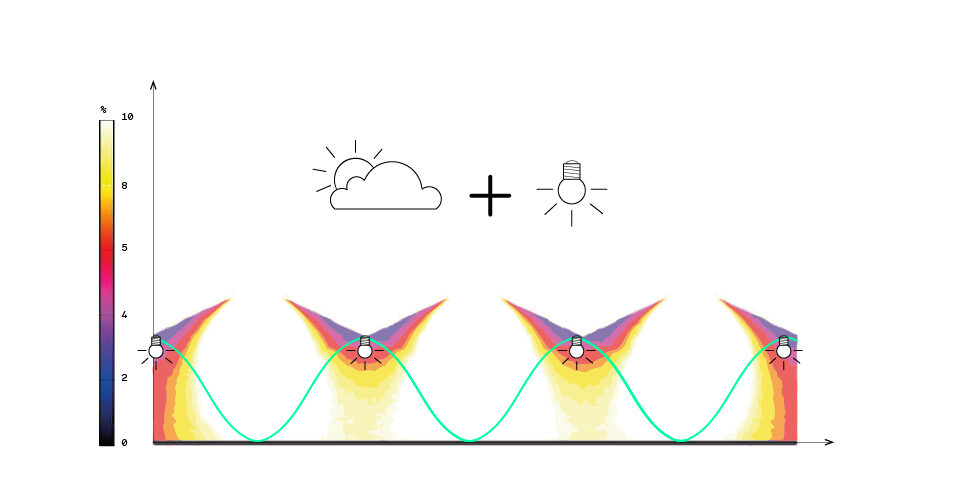

Carré des Docks Study to Determine the Position of Artificial Lighting

Optimized Approach to Seasonal Thermal Comfort

  1. Study to Determine the Position of Artificial Lighting

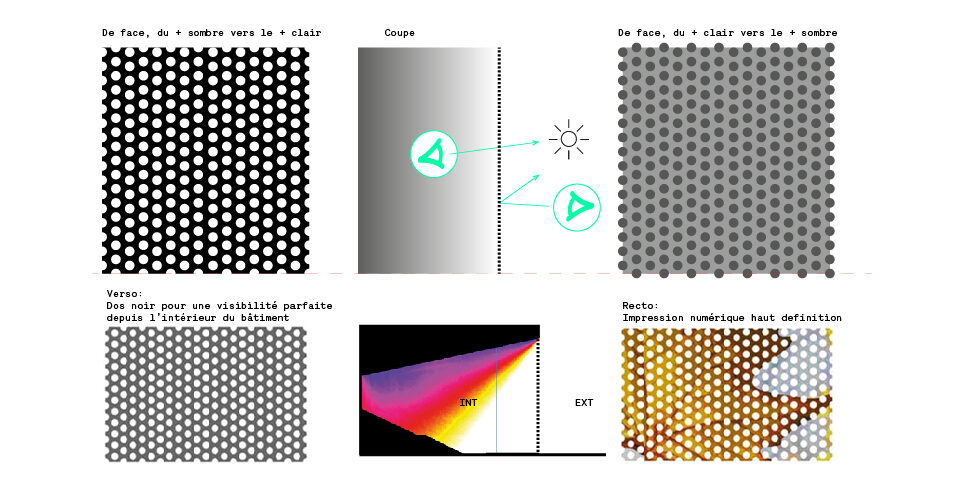

Carré des Docks Solar Protection of the Conference Room

Appropriate use, shading, and sun protection

  1. Sun protection in the conference room
  • Client

    CODAH – SPL des Docks

  • Team

    SPIE Batignolles Nord, Richez_Associés, Paul Andreu, dUCKS scéno, Kahle Acoustics, TPFI, T/E/S/S, Sodecset

  • Performances

    Conservation of existing structures, use of natural zenithal lighting, marine thermal energy heating (65% of needs covered by seawater heat pump), cooling by natural ventilation.

  • Surface

    20,650 m²

  • Schedule

    2014 – Inaugurated December 2016

  • Photographs

    Georges De Kinder

  • AFB Team

    Antonio Torres
    AFB alumni: Quentin Absolonne, Aymeric Delmas, Lucas Dugrenot, Yohan Gauchet, Olivier Puertas, Frédéric Schmitt, Gauthier Soirot, and Yohann Pierre
